Durastill 4280 Commercial Water Distiller BUNDLE

Durastill 4280 Commercial Water Distiller BUNDLE

Regular price $8,194.00 $6,812.00 Sale

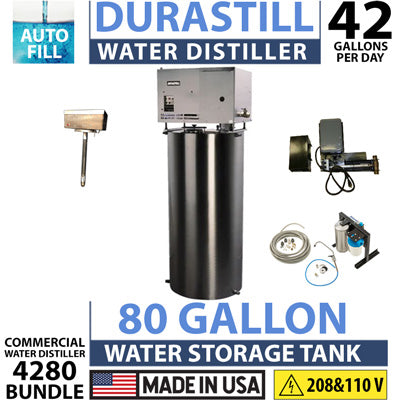

The Durastill 4280 Commercial Water Distiller ALL-IN-ONE-BUNDLE includes everything you need to produce 42 gallons per day, store 80 gallons, automatically clean itself and pump the distilled water where you need it.  The distillers come in two electrical configurations 208 Volt or 240 Volt  and all of the accessories are 110 Volt.  This is the third largest distillation system we sell. The largest is the 84150. This distillation system is fully automatic to meet the most demanding industrial needs. In fact, it is designed to connect a demand pump providing distilled water “on tap.”

Durastill 4280 Commercial Water Distiller BUNDLE overview:

  • (1) Model 42C Commercial Water Distillers
  • (1) Automatic Drain Valves for 42C
  • (1) 80 Gallon Stainless Steel Water Storage Tank
  • (1) Water Sight Level for 80 gallon tank
  • (1) UV Light for 80 gallon tank
  • (1) 3.3 Gallon Per Minute Free Standing Remote Faucet System

What exactly do I get with my Durastill 4280 system BUNDLE purchase?

Part Numbers for Durastill 4280 Commercial Water Distiller BUNDLE:

 Part Number Description
400216 42C Distiller - 42 Gallon, Auto Fill (208 or 240 volt)
400328 Automatic Drain Valve for 42C Distiller (110 volt)
400108 80 Gallon Stainless Steel Tank with 24 Volt Float Control
400510 Water Sight Level
400425 UV Light, Model UV5 for 80 Gallon Tank (110 volt)
400103 3.3 GPM Free Standing Remote Faucet System (110 volt)

Customers Who Trust the Durastill

commercial use customers who trust Durastill

Proudly Made in the USA, Durastill has been the commercial water distiller leader for over 46 years trusted by Fortune 500 companies, organic and all-natural product manufacturers, Inc. 5000 companies, Universities and more!

Rocky Mountain Water Distillers Customer Service Banner

Durastill 4280 Commercial Water Distiller

The Durastill 4280 Commercial Water Distiller produces 42 gallons per day and stores 80 gallons of distilled water. It comes in two electrical configurations 208 Volt or 240 Volt depending on your industrial needs.  This distillation system is fully automatic to meet the most demanding industrial needs.

Customers Who Trust the Durastill

commercial use customers who trust Durastill

Proudly Made in the USA, Durastill has been the commercial water distiller leader for over 46 years trusted by Fortune 500 companies, organic and all-natural product manufacturers, Inc. 5000 companies, Universities and more!

Rocky Mountain Water Distillers Customer Service Banner

Durastill 4280 Product Overview:
  • Completely Automatic Commercial Water Distillation System
  • 208 Volt or 240 Volt electrical configuration options
  • (1) Durastill Model 42C produces 42 gallons in 24 hours
  • Produces up to 42 gallons of pure distilled water per day or 159 liters per day
  • 80 gallon stainless steel water storage tank is 18 gauge 304 stainless steel
  • Water Sight Level so you can see how full the tank it
  • Fully automatic commercial-grade distillation system
  • Made in the USA
  • 1 Year Parts Replacement Warranty
  • Industrial Grade Stainless Steel Construction
  • *** Compatible with the Durastill Automatic Drain Valve
  • *** Compatible with UV Light for 80 gallon tank
  • *** Compatible with the 3.3 Gallon Per Minute Remote Faucet System

Durastill 4280 Product Details:

  • 30 amp service is recommended for the 42C distiller
  • 240 volt AC - 50/60 Hz - single phase - 22 amps & 5000 watts
  • 208 volt AC - 50/60 Hz - single phase - 25 amps & 5000 watts
  • NEMA 6-50P plug (50 amp cord and plug is heavier duty and lasts longer)
  • Completely AUTOMATIC System
  • Main power fan on/off control switch
  • Automatic water fill on/off control (float control protected)
  • Pilot switch controlling relay
  • Low voltage external pilot circuit
  • 24 volt breaker-protected control circuit
  • Manually reset electrical thermostat
  • Boiling chamber is 18 gauge 316 alloy stainless steel. Holds 5.79 gallons (2.94 water, 2.85 steam)
  • Aluminum cooling fins on stainless steel condenser coils
  • 12 inch or 30.5 cm diameter condenser fan, 1/20 HP motor
  • Distiller Cabinet - 20 gauge 304 stainless steel with black painted carbon steel support structure for fan and coil
  • Storage tank is 18 gauge 304 stainless steel and holds 80 gallons
  • 24 volt float switch in storage tank for high level control
Durastill 4280 Product Specifications:
  • Durastill 4280 Overall Height: 74 inches
  • Durastill 4280 Overall Width: 23 inches
  • Distiller: Model 42C
  • Height: 17 inches
  • Width: 23 inches
  • Depth: 18 inches
  • Shipping Weight: 75 pounds
  • Storage Tank: 80 Gallons
  • Height: 52 inches (approx. 57 inches including furnished stand)
  • Width: 23 inches
  • Depth: 23 inches
  • Shipping Weight: 95 pounds
  • Total Shipping Weight =170

Durastill 4280: Frequently Asked Questions & Answers

How much does the 4280 weigh when it is completely full of water?

When the 4280 is completely full it weighs a total of 927 pounds. Taking this weight load into account will help you determine the best location for your Durastill 4280 and make sure your floor can handle this weight load.  The Total Weight when the 80 gallon tank is full and the 42C distiller boiling chamber are (hold 6 gallons) full is 86 gallons of water x 8.8 pounds per gallon is 757 pounds + 75 pounds 42C distiller weight + 95 pounds tank weight = 927 pounds.

If the 42C distiller uses 22-25 Amps depending on the voltage, then why use a 50 Amp cord and plug instead of just a 30 Amp one?

We use a 50 AMP cord and plug for the 42C distiller because it is more heavy duty and it lasts longer. The 30 Amp cord and plug doesn't last as long. At Durastill our commercial water distillers are battle tested and you get 46 years of experience built into your industrial-grade system. We give you the best quality and durability!

How do I configure the whole system including the Durastill 4280 + Automatic Drain Valves + UV Light + 3.3 Gallon-Per-Minute Remote Faucet System?

That is a great question. You should never buy the Durastill 4280 without the automatic drain valves for the distiller and the UV Light for the tank. The Automatic Drain Valve is attached to the exit line of the 42C distiller boiling chamber. It will open once a day and flush out or drain everything that has accumulated in the boiling chamber. Each 42C needs it's own Automatic Drain Valve. The UV Light stays on all the time and constantly sterilizes the 80 gallon tanks. This means you never have to clean your distillers or tank, because you are automatically cleaning your distillers and water storage tank every day. This extends the life of your 4280 Commercial Water Distillation System! In fact I have never sold a commercial water distillers without these add-ons.

You are going to need to pump the water out of the 80 gallon storage tank.  I recommend you add a ball valve so you can turn off the water if you need to. This makes it really easy to turn off the water and replace the Post Carbon Filter in the Remote Faucet System. The Durastill 3.3 gallon per minute Remote Faucet System is a on-demand pumping system with an accumulator to give you a steady and sure stream of water. Plus you have a faucet to dispense the distilled water. Most customers buy this Remote Faucet System but some people already have their own custom pumping system setup.

4280 Commercial Distiller System Power Diagram



HOW-TO Setup and Install Durastill 4280 Commercial Water Distiller

Durastill 4280 Commercial Water Distiller PRODUCT MANUAL:

Durastill 42C Automatic Commercial Water Distiller Manual

>>CLICK HERE TO DOWNLOAD THE PDF MANUAL [English]

Durastill 80 Gallon Water Storage Tank Manual

>>CLICK HERE TO DOWNLOAD THE PDF MANUAL [English]

Durastill Automatic Drain Valve for Model 42C

The 110 Volt Durastill Automatic Drain Valve is made specifically for the Durastill Model 42C Commercial Water Distiller to keep it clean, operate at maximum efficiency and it even extends the life of your 42C. Remember after you distill 42 gallons in a day, the filth that was in the 42 gallons of tap water is now trapped in your boiling chamber. The Automatic Drain Valve is attached to the exit line of the 42C boiling chamber and it will open and drain out the boiling chamber once a day or it can be custom programmed to drain as many times as you want in 24 hours.  This means your distiller is getting all of the minerals, sediment, chemicals, toxins and other boiling chamber filth flushed out and cleaned out everyday. Each 42C needs it's own Automatic Drain Valve.

The great news is that when you combine the Automatic Drain Valve for your 42C and the UV Light for your 80 gallon storage tank, you are automatically cleaning your entire Commercial Water Distillation System everyday which means you hardly have to clean it manually.

Auto Drain Product Overview:

  • Automatically drains 42C boiling chamber once every 24 hours or desired set interval
  • 110 Volt System - 110 VAC drive, motor and drain valve
  • 24 hour timer can be programmed to drain boiling chamber as often as needed to ensure a clean mineral and sediment free system.
  • Durastill recommends setting the timer to drain the boiling chamber (aka evaporator tank)  once every 12 hours of distiller operation, then adjust based on mineral and scale buildup. If scaling is excessive, drain more often.
  • The drain valve approximately 7 minutes to open the drain, completely drain the boiling chamber and then close the drain.
  • Made in USA
  • The Automatic Drain Valve must be mounted to a nearby wall or supporting structure. Make sure the valve is vertical and is below the level of the evaporator drain.

 Auto Drain Product Specifications:

  • Part Number 400328
  • Model Number DV-2
  • Weight 10 pounds

Auto Drain: Frequently Asked Questions & Answers

How does the Durastill Automatic Drain Valve work?

During the automatic draining process the 42C water distillation stops temporarily for about 7 minutes and then once finished distillation resumes. When the automatic draining First the timer dial must be programmed for a specific time to initiate the automatic drain process. The process then starts when the motorized valve assembly is activated by the timer. The drain valve will automatically rotate, drain the evaporator tank, and interrupt the distiller's operation. After approximately 7 minutes the drain valve will rotate again, close the drain, and enable the distiller to continue operation.

Durastill Automatic Drain Valve for 42C  PRODUCT MANUAL:

>>CLICK HERE TO DOWNLOAD THE PDF MANUAL [English]

Durastill Ultraviolet Light Model UV-5

The Durastill Ultraviolet Light Model UV-5 is a 110 volt in-tank UV light designed to be installed in the Durastill 80 gallon water storage tanks.  The UV light is always on inside of the stainless steel tank, which means the tank is always being sterilized. This means you rarely have to clean out your storage tank because it is automatically being self-cleaned everyday from the UV light.

The Durastill UV-5 manual states, "Light of the proper ultraviolet wave length will render many of the most common forms of bacteria ineffective after sufficient exposure."

CAUTION: This fixture incorporates a lamp with emits ultraviolet radiation harmful to eyes and skin. Precautions should be taken to insure that personnel are not exposed to direct or reflected radiation. Before cleaning or relamping, always disconnect power.

The quarts tube and ultraviolet lamp should be handled only when cold, with clean cotton gloves or wrapper. Do not use your bare hands because you will get oil from skin on the lamp. Should the quartz or lamp be touched with bare hands, clean with alcohol to remove the fingerprint oils. The quartz and lamp should be completely dry before operation.

The UV Light control box rests on the tank and replaces the regular tank lid. There is a red light that indicates that the UV Light is ON.

UV-Light Product Overview:

  • Ultraviolet Light to clean and sterilize storage tank
  • Designed for constant use
  • Safety switches
  • Quarts tube and Ultraviolet lamp
  • 110 Volt in-tank UV light
  • Compatible with Durastill 80 Gallon and 150 Gallon water storage tanks
  • Made in USA

UV-Light Product Details:

  • Model number UV-5
  • Durastill part number 400425
  • Weight 10 pounds

UV-Light: Frequently Asked Questions & Answers

Are there any safety mechanisms built into the Durastill UV-5 Light system?

Durastill Ultraviolet Light System Safety Features

Yes, the Ultraviolet system incorporates two safety switches that will turn OFF the lamp should the control box be opened or removed accidentally while the power is on. The indicator light will remain lit as long as the lamp is functioning, which helps provide a visual safety reminder that the lamp is ON.

Should you ever touch the lamp or light with bare hands?

No, you should never touch the lamp or UV light with your bare hands. Always use gloves then handling the UV light, especially during installation! The manual recommends using soft cotton gloves.

Durastill Ultraviolet Light UV-5 Model PRODUCT MANUAL:

>>CLICK HERE TO DOWNLOAD THE PDF MANUAL [English]

Durastill 3.3 Gallon-Per-Minute Remote Faucet System

The 110 Volt Durastill Remote Faucet System provides everything you need including the 3.3 gallon per minute pump, the pulse eliminator tank, post carbon filter, 50 feet of polyethylene tubing, the stainless steel faucet.  Proudly Made in the USA, Durastill has been the water distiller leader for over 46 years! All Durastill Remote Faucet Systems come with a 1-Year Warranty.

The Durastill 3.3 Gallons Per Minute Remote Faucet System is the perfect accessory for your Durastill 4280 Commercial Water Distillation System!  The Durastill on-demand 3.3 gallons per minute Remote Faucet system provides a steady and sure stream of water for your manufacturing facility or for your industrial needs. It comes with 50 feet of of water line and a faucet so you can send the distilled water right where you need it!

Example of Durastill Remote Faucet System hooked up to 80 Gallon Water Storage Tank:

RFS Installed on 80 Gallon and 150 Gallon Storage Tanks Example

Remote Faucet System Product Overview:

  • Complete with all necessary plumbing supplies. Includes stainless steel faucet
  • Pump only runs while water is being drawn
  • Maintains line pressure, so it supplies water instantly
  • Stainless steel pulsation eliminator tank provides steady flow and sure stream of water
  • Activated charcoal filter "finishes" taste of water. (To bypass merely remove filter cartridge.)
  • 110 volt operation
  • Durastill 1 Year Parts Replacement Warranty
Remote Faucet System Product Details:
  • Plugs into 110 volt outlet
  • Compatible with every water storage tank (10 Gallon, 25 Gallon, 80 Gallon & 150 Gallon) except the countertop water storage tanks
  • Compatible commercial model numbers: Durastill 4280, Durastill 42150, Durastill 84150
  • Not compatible with countertop model numbers: Durastill 30-4CT, Durastill 46-4CT
  • 3.3 Gallons-Per-Minute Demand Pump
  • Remote Faucet Replacement Filter
  • Pulsation Eliminator Tank
  • 50 Feet of water line
  • Stainless Remote Faucet
  • Distiller Part#: 400103 Free Standing Remote Faucet System with 3.3 GPM pump
Product Specifications:
  • Durastill Remote Faucet System
  • Height: 14 inches
  • Width: 13 inches
  • Depth: 10 inches
  • Shipping Weight: 20 pounds

HOW-TO INSTALL THE DURASTILL REMOTE FAUCET SYSTEM on the 80 Gallon Water Storage Tanks

The installation video shows how to connect the Remote Faucet System to the 25 gallon tank, but the nipple you connect to is the exact same connection as the 80 gallon water storage tanks. The 80 gallon tank is connected on the side of the tank instead of underneath the tank (like the 25 gallon tank).

Durastill Remote Faucet System PRODUCT MANUAL:

>>CLICK HERE TO DOWNLOAD THE PDF MANUAL [English]
